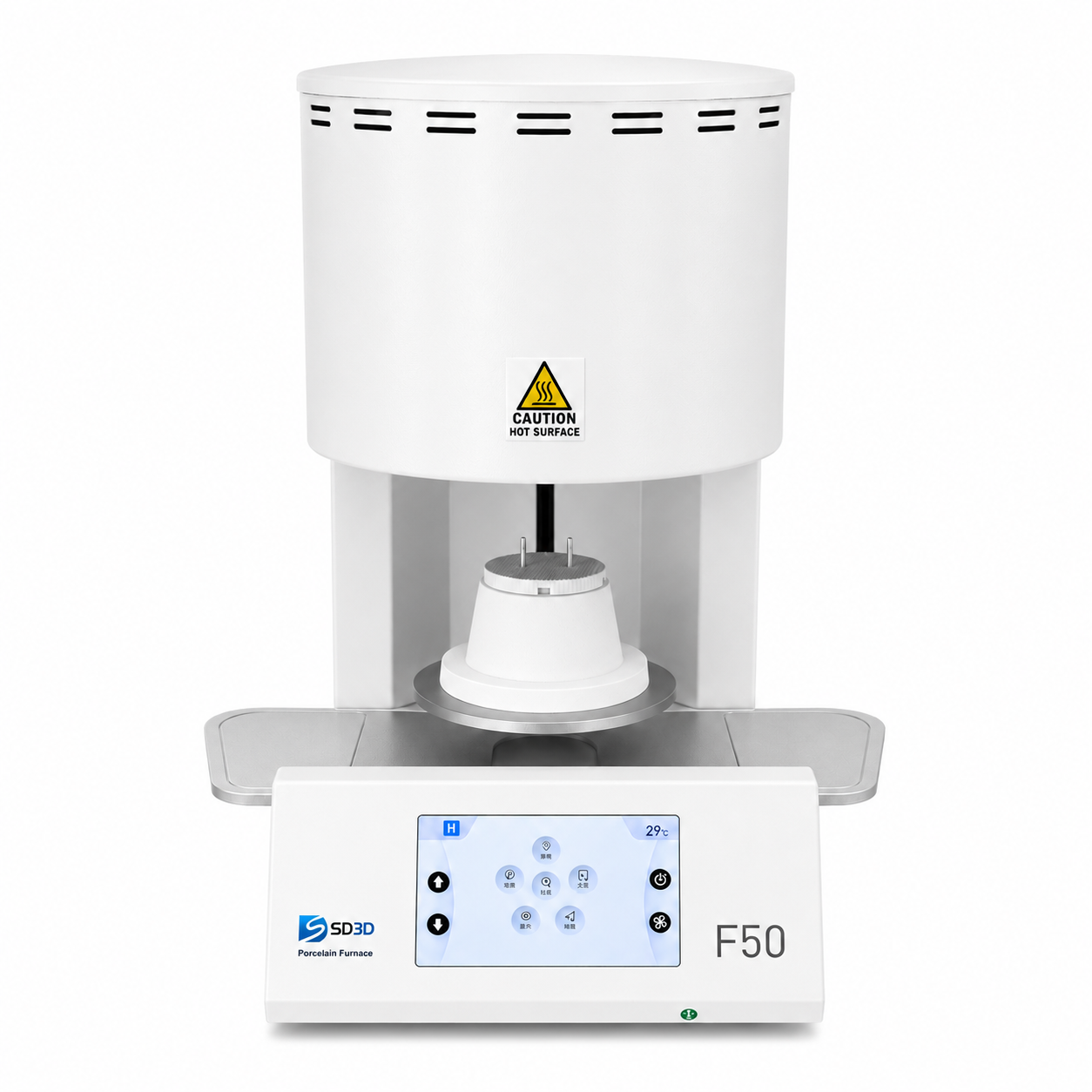

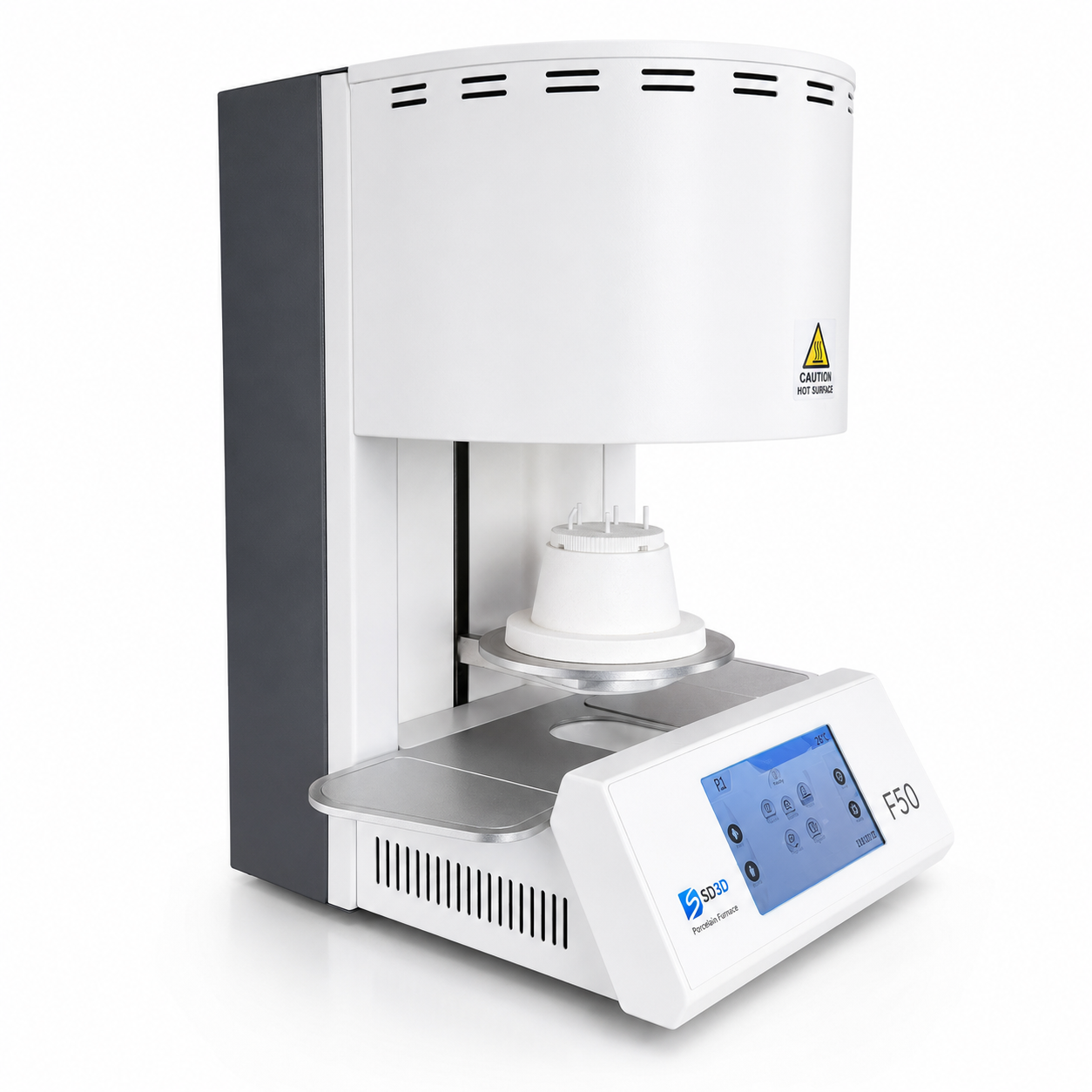

F50 Dental Porcelain & Crystallization Furnace

The SD3D F50 is a dental porcelain and crystallization furnace designed for dental laboratories and clinics. It is suitable for crystallization, glazing and ceramic firing workflows for lithium disilicate, glass ceramics and dental ceramic restorations.

With a maximum working temperature of 1200℃, vacuum-assisted firing, adjustable heating programs and a color touchscreen interface, F50 provides a practical solution for crowns, veneers, inlays, onlays and other aesthetic ceramic restorations.

The furnace supports Chinese and English operation, 20 program groups, 10 programs per group, preheating, night program, vacuum diagnosis and real-time status monitoring, helping dental technicians manage daily ceramic firing workflows more efficiently.

1. Dental Porcelain and Crystallization Workflows

F50 is designed for crystallization, glazing and porcelain firing applications in dental laboratories and clinics. It is suitable for lithium disilicate, glass ceramics and aesthetic ceramic restorations.

2. Vacuum-Assisted Ceramic Firing

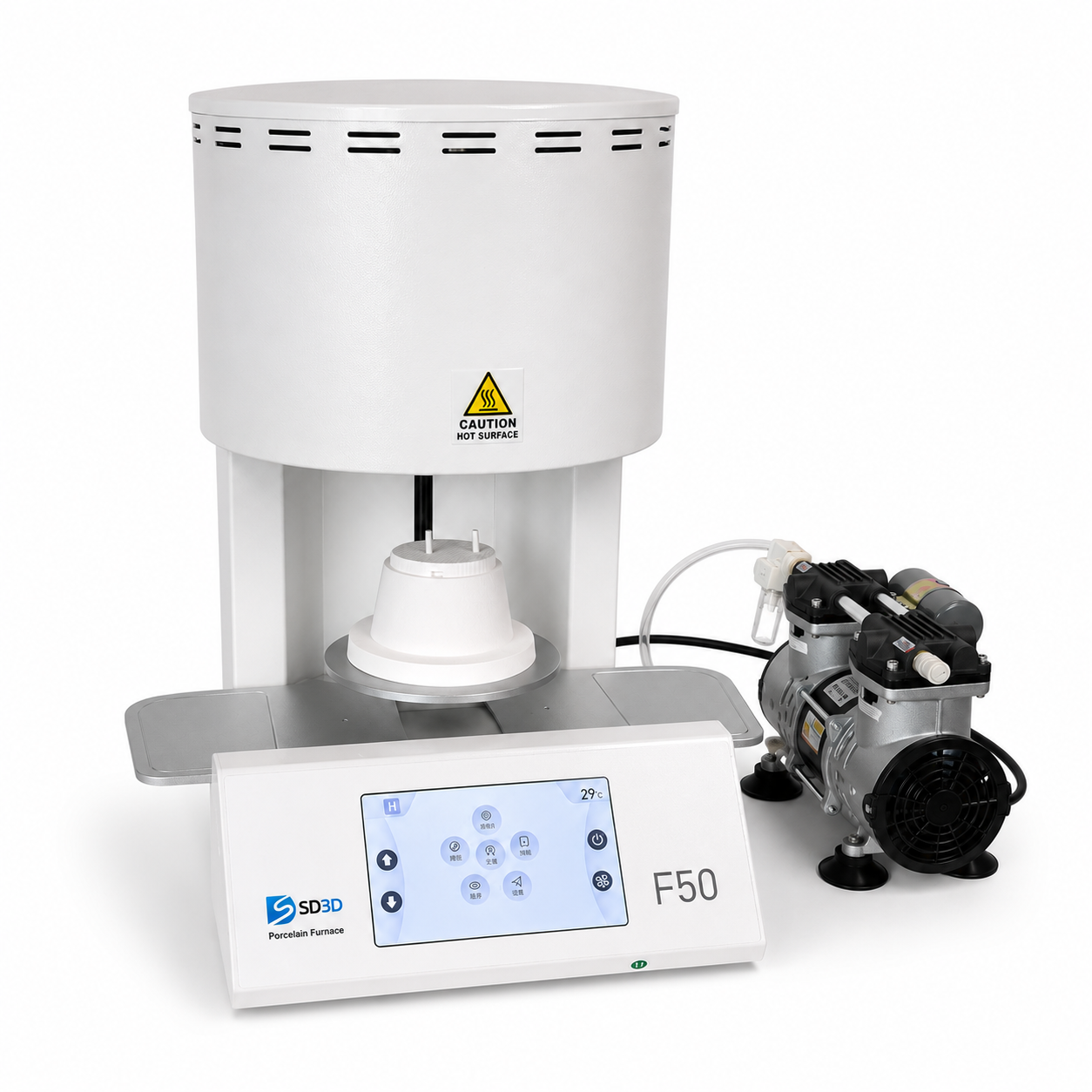

The furnace works with an external vacuum pump and supports vacuum-assisted firing programs. Vacuum settings can be adjusted according to different ceramic firing requirements.

3. Maximum Working Temperature of 1200℃

With a maximum working temperature of 1200℃, F50 provides stable heating performance for daily dental ceramic processing, including crowns, veneers, inlays and onlays.

4. Adjustable Heating Programs

F50 allows users to adjust key firing parameters, including starting temperature, heating rate, target temperature, holding time, vacuum degree, vacuum start temperature, vacuum shutdown temperature, door opening temperature, drying time and cooling time.

5. Program Group Management

The system provides 20 program groups for categorized program storage. Each group can save 10 heating programs, making it convenient for dental labs to manage different materials and firing workflows.

6. Color Touchscreen Interface

The color touchscreen interface allows users to select programs, adjust parameters, monitor operation status and switch between Chinese and English language settings.

7. Preheating and Night Program

The preheating function can be turned on or off manually. The night program keeps the furnace at 100℃ with the furnace door closed until the user manually exits.

8. Vacuum Diagnosis and Air Tightness Check

F50 supports vacuum diagnosis and air tightness checking. The system can pump down to -95kPa and hold vacuum for inspection, helping users monitor vacuum performance.

9. Real-Time Status Monitoring

The status page allows users to check real-time room temperature, humidity and voltage, helping technicians monitor the working environment during operation.

10. Compact Tabletop Design

With an overall size of 32.5 × 42 × 55 cm and a net weight of 24.6 kg, F50 is compact enough for dental labs, clinics and CAD/CAM workspaces.
